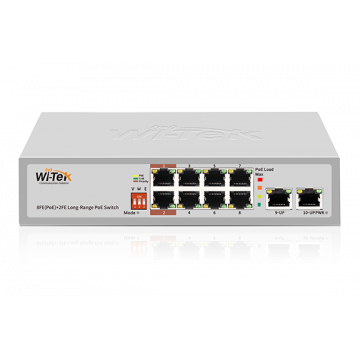

Коммутатор PoE 8 port, "Wi-Tek", WI-PS210GS, 10/100/1000Mbps

Характеристики WI-PS210GS
×
Model    WI-PS206S    WI-PS210S    WI-PS210GS
Hardware Version    V1    V1    V1
Interfaces    4 10/100Mbps RJ45 PoE Ports    8 10/100Mbps RJ45 PoE Ports    8 10/100/1000Mbps RJ45 PoE Ports
Uplink Ports    2 10/100Mbps    2 10/100Mbps    2 100/1000Mbps
PoE Port    Port 1-4    Port 1-8    Port 1-8
PoE Standard    Port 1-4: 802.3af/at 30W    Port 1-8: 802.3af/at 30W    Port 1-8: 802.3af/at 30W
PoE Power    30W max per port, 60W Max.    30W max per port, 110W Max.    30W max per port, 120W Max.
Switching Capacity    1.2Gbps    2Gbps    5.6Gbps
Packet Forwarding Rate    0.89Mpps    1.49Mpps    4.17Mpps
Power Supply    AC 100-240V, 50/60Hz 65W    AC 100-240V, 50/60Hz 120W    AC 100-240V, 50/60Hz 120W
Power Consumption    Idle: 5W
PoE: 65W Max.    Idle: 10W
PoE: 120W Max.    Idle: 10W
PoE: 120W Max.
LED Indication    PWR: Solid on: The device power on is normal, Off: The device is power off or failed.
PoE: On: PoE is working, Off: PoE not working.
Link: On: Data on TX/RX, Off: Ports link down.
PoE Load Max: Green On: PoE Power < 25%, Yellow On: 25% < PoE Power < 50%, Orange On: 50% < PoE Power < 75%, Red On: PoE Power > 75%.
Independently controlled DIP switch: V(VLAN): All PoE Port isolated each other, W(PoE Watchdog): PoE Watchdog Enable, E(Extend): PoE Extend mode, Transmission Distance 250 meters.
Fan Quantity    Fanless
Switch Dimensions    200x118x44 mm    200x118x44 mm    200x118x44 mm
Package Dimensions    245x190x60 mm    245x190x60 mm    245x190x60 mm
Weight    Net Weight: 0.60 kg
Package Weight: 0.95 kg    Net Weight: 0.76 kg
Package Weight: 1.06 kg    Net Weight: 0.76 kg
Package Weight: 1.09 kg
Installation    Wall-mount, desktop
Surge Immunity    IEC 61000-4-5 Common mode 4kV, Differential mode 2kV
ESD Protection    IEC 61000-4-2 Contact discharge 8kV, Air discharge 15 kV
Operating Temperature    -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature    -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity    10~90% RH non-condensing
Storage Humidity    5~95% RH non-condensing
Certification    CE, FCC, RoHS, UKCA, RCM
