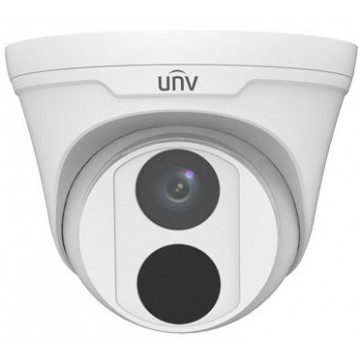

4 Мп IP-видеокамера, Uniview, IPC3614LB-SF28-A, купольная

Характеристики IPC3614LB-SF28-A
×
IPC3614LB-SF28-A    IPC3614LB-SF40-A
Camera
Sensor    1/3", 4.0 megapixel, progressive scan, CMOS
Min. Illumination    Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR
Day/Night    IR-cut filter with auto switch (ICR)
Shutter    Auto/Manual, 1 ~ 1/100000s
Adjustment angle    Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
S/N    >56dB
WDR    DWDR
Lens
Lens Type    2.8mm and 4.0mm @2.0, Fixed-focal
Lens Mount    M12
Angle of View (H)    97.0°    79.0°
Angle of View (V)    52.2°    42.3°
Angle of View (O)    107.5°    85.1°
DORI
DORI Distance    Lens (mm)    Detect (m)    Observe (m)    Recognize (m)    Identify (m)
2.8    63.0    25.2    12.6    6.3
4.0    90.0    36.0    18.0    9.0
Illuminator
IR Range    Up to 30m (98ft) IR range
Wavelength    850nm
IR On/Off Control    Auto/Manual
Video
Video Compression    Ultra 265, H.265, H.264, MJPEG
H.264 code profile    Baseline profile, Main profile, High profile
Frame Rate    Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream:4CIF (704*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate    128 Kbps~6144 kbps
U-code    Supported
OSD    Up to 4 OSDs
Privacy Mask    Up to 4 areas
ROI    Up to 8 areas
Motion Detection    Up to 4 areas
White Balance    Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting    Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction    2D/3D DNR
Smart IR    Support
Flip    Normal/Vertical/Horizontal/180°
Dewarping    N/A
HLC    Supported
BLC    Supported
Defog    Digital Defog
Storage
Edge Storage    Micro SD, up to 128GB
Network Storage    ANR, NAS(NFS)
Network
Protocols    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration    ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host    Up to 32 users. 2 user levels: administrator and common user
Security    Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client    EZStation
EZView
EZLive
Web Browser    Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network    1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMC    FCC: FCC Part 15
Safety    CE: EN 60950-1
UL: UL60950-1
IEC 60950-1
General
Power    DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W
Power Interface    Ø 5.5mm coaxial power plug
