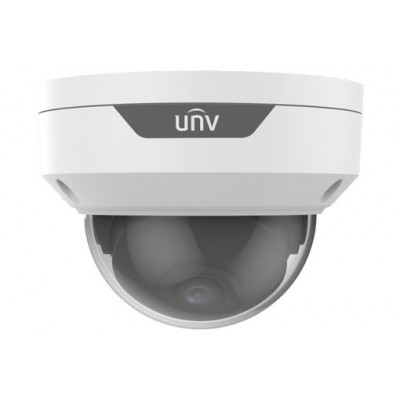

5 Мп AHD/CVBS/TVI/CVI, UNIVIEW, UAC-D115-F28, купольная
5 Мп AHD/CVBS/TVI/CVI, UNIVIEW, UAC-D115-F28, купольная
В наличии 10 шт
5 780 KZT
/
шт
5 Мп AHD/CVBS/TVI/CVI, UNIVIEW, UAC-D115-F28, купольная
Описание
Характеристики
Отзывы
Model UAC-D115-F28 UAC-D115-F40
Sensor
Pixel 5MP
Size 1/2.7"
Minimum illumination 0.02 lux (F2.0, AGC ON)
0 lux (IR ON)
Lens
Lens 2.8mm 4.0mm
Lens mount M12
Angle of view H: 102.2° V: 53.9° D: 124.8° H: 82.9° V: 46.1° D: 100.0°
Illuminator
Illuminator One IR illuminator
Illumination distance 20m
Lifetime ≥60,000 hours
Video
Resolution 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V)
Frame rate TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVBS: PAL, NTSC
Shutter time PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure mode Four modes: Global (default), BLC, HLC, DWDR
Day/Night Three modes: Auto (default), Day, Night
Digital noise reduction 2D
White balance Two modes: Auto (default), Manual
WDR DWDR
Smart IR Support
Flip Supports 180° horizontal flip, 180° vertical flip
Defog N/A
Audio
Microphone N/A
Camera audio N/A
Interface
Power 5.5mm power interface
Video output BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature -30°C to 60°C (-22°F to 140°F)
Humidity ≤95% (RH, non-condensing)
Surge protection 4kV
Ingress protection IP67
General
Power DC 12V (±25%), with reverse polarity protection, Max 3.4W
Mount Surface mount (default), optional backbox, wall/pole/corner/tilted/pendant mount bracket
Dimensions Φ111mm*83mm (diameter*height)
Material Plastic
Weight 233g(0.51lb)
Certification CE, FCC
Sensor
Pixel 5MP
Size 1/2.7"
Minimum illumination 0.02 lux (F2.0, AGC ON)
0 lux (IR ON)
Lens
Lens 2.8mm 4.0mm
Lens mount M12
Angle of view H: 102.2° V: 53.9° D: 124.8° H: 82.9° V: 46.1° D: 100.0°
Illuminator
Illuminator One IR illuminator
Illumination distance 20m
Lifetime ≥60,000 hours
Video
Resolution 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V)
Frame rate TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVBS: PAL, NTSC
Shutter time PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure mode Four modes: Global (default), BLC, HLC, DWDR
Day/Night Three modes: Auto (default), Day, Night
Digital noise reduction 2D
White balance Two modes: Auto (default), Manual
WDR DWDR
Smart IR Support
Flip Supports 180° horizontal flip, 180° vertical flip
Defog N/A
Audio
Microphone N/A
Camera audio N/A
Interface
Power 5.5mm power interface
Video output BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature -30°C to 60°C (-22°F to 140°F)
Humidity ≤95% (RH, non-condensing)
Surge protection 4kV
Ingress protection IP67
General
Power DC 12V (±25%), with reverse polarity protection, Max 3.4W
Mount Surface mount (default), optional backbox, wall/pole/corner/tilted/pendant mount bracket
Dimensions Φ111mm*83mm (diameter*height)
Material Plastic
Weight 233g(0.51lb)
Certification CE, FCC
Разрешение
5 Мп
Тип питания
12V
Исполнение
Купольная
Объектив
Фиксированный
Тип камеры
AHD/TVI
